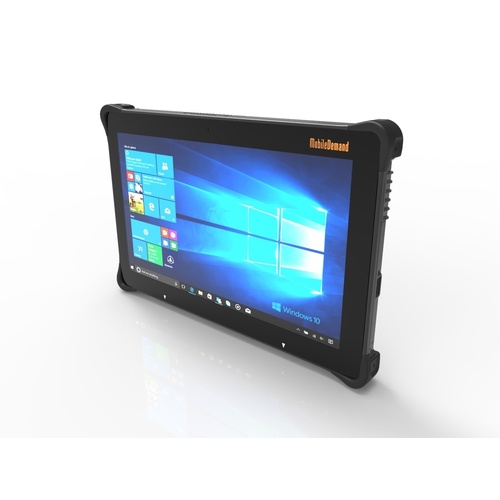

The xTablet T1680 is MobileDemand's next generation rugged tablet. Built with our trademark durability and increased processing power and memory, including the latest, 8th generation Intel® Core™ i5-8250U Processor, this tablet takes productivity to the next level in nearly any industry, including warehousing, logistics, and public service. The sunlight viewable option with light-filtering technology and high contrast ratio, makes viewing in direct sunlight clearer and is ideal for those working in the Agriculture, Oil & Gas or any outdoor industry.

Contact a SLATE PC Expert today on (02) 9191 4991 to discuss your rugged tablet project.



Physical and environmental characteristics

Dimensions: 298.5 mm W x 191.8 mm H x 20.1 mm D

Display: 11.6" diagonal widescreen

Weight: 1.23 kg - base configuration

Sealing: IP 65 (water and dust)

Drop / Shock: 26 repeated drops to 1 operating unit on to plywood over concrete from 48 inches

Operating Temp: -20° C to +60° C - AC powered only. - Battery powered operating temp starts at 0° C (32° F)

Storage Temp: -40° C to +71° C

Humidity: 95% non-condensing

Performance characteristics

Processor: Intel® Core i5-8250U

System Memory: DDR4: 8GB RAM standard

Storage Drive: Standard - 256GB Modular, 2242

Optional - 512GB  Modular, 2242

Operating System: Windows® 10 Professional

Display:  1920 (W) x 1080 (H) 500 nits 10-pt Projected Capacitive Touch (handles rain drops and thin gloves)

Sunlight viewable display option - LCD output

Buttons: Windows® Virtual Button, volume +/-, power, barcode scanner trigger, programmable function key

I/O Board Configuration: Standard: USB Type A 3.0 (2) 3.5mm Aux Power - DC Barrel Jack Standard SIM Card Slot MicroSD Slot

Battery System: 43Wh, 11.1V, 4130 mAh replaceable battery up to 7-hour1 battery life with standard battery

Optional: 86Wh, 11.1V, 7,800 mAh XL battery pack with up to 8-hour¹ battery life.

LED: 3 color LEDs for notification, power/charger, wireless

Audio: Intel® HD audio, built-in microphone

Sensors: Accelerometer, gyroscope, e-compass, and light

Scanner: High performance 2D barcode scanner (optional)

Camera: 8MP integrated w/ LED flash (rear-facing) and 2MP integrated (front-facing)

Wireless & GPS network characteristics

Wireless: Intel Dual Band Wireless AC 9260  Support 802.11a/b/g/n/ac

Bluetooth: 5.0

GPS: Optional (Mutually exclusive with WWAN)

WWAN: One M2 Socket for WWAN 3042-S3-B (Mutually exclusive with GPS)

LTE: Sierra Wireless EM7430

SKU T1680
Brand MobileDemand
Shipping Weight 1.0000kg
